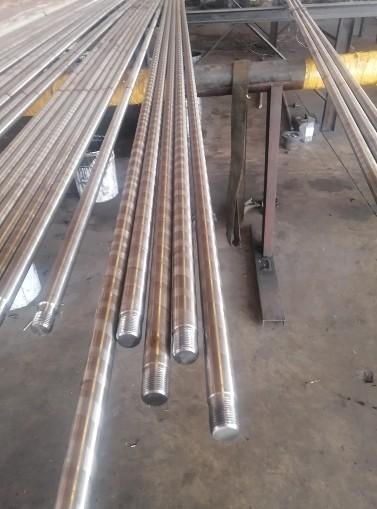

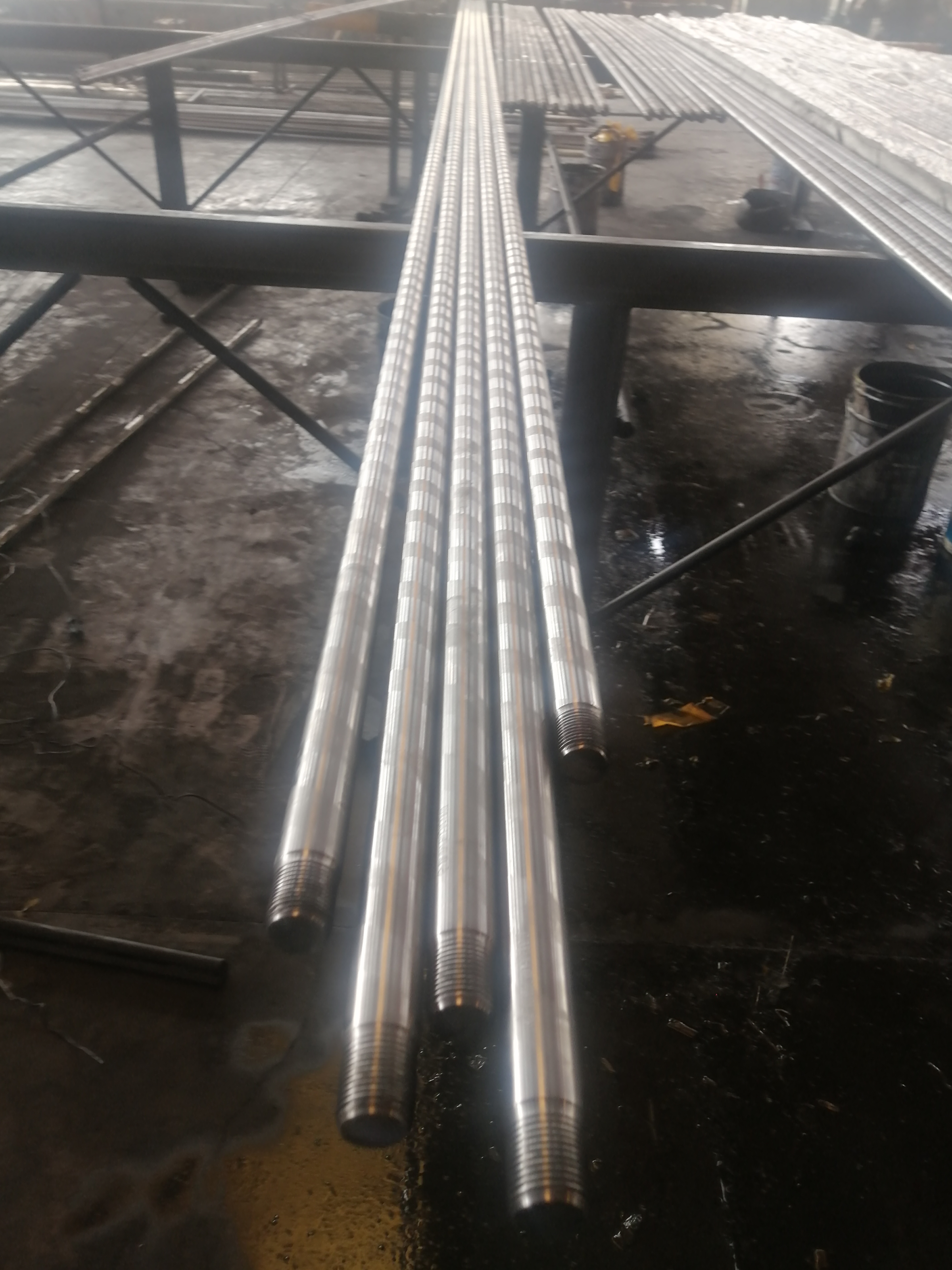

Conventional Spray Metal Polished Rod Polished Bar With API Standard

Brand Name : ZS

Model Number : 1-1/2,1-1/4,1-1/8

Certification : API 11B

Place of Origin : China,Henan

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000sets/month

Delivery Time : 15 work days

Packaging Details : Metal or wooden case

Finish : Polished

Core Components : ALLOY STEEL

Application : Oil Drilling Ect

Features : polished rod

Length : Rod

Packing : Wooden Case

Material : Polished Steel

Shape : Steak

Surface Finish : Polished

Contact Now

Product Application of Polished Rod

Product Application of Polished Rods

Polished rods are an integral component in the oil and gas industry, specifically used to connect sucker rods to the pump unit. These rods play a crucial role in the efficient extraction of fluids from the well.

Manufacturing Specification: API 11B

Material:
- Chemical Composition: The chemical composition of polished rods may vary depending on the manufacturer's specifications. They are typically made from AISI recommended series steels that meet the necessary chemical and mechanical property requirements.
a) Carbon Steel: AISI 1035-1050
b) Stainless Steel: AISI 304/316 or 431
c) Alloy Steel:
- AISI 4120-4140
- AISI 4315-4340
- AISI 4615-4625
- AISI 8620-8630

Conventional Spray Metal Polished Rod Polished Bar With API Standard

Size mm (in)	Material	Surface coating	Tensile strength M Pa (psi)	Suitable media	Length m (ft.)
25 (1)	20CrMo	Ni35	794-965 (115, 000-140, 000)	Cl-, CO2, H2S	2.4 (8), 3.3 (11) 4.8 (16), 6.7 (22) 7.3 (24), 7.9 (26) 9.1 (30), 10.9 (36)
28 (1-1/8)	20CrMo	Ni35
32 (1-1/4)	20CrMo	Ni35
38 (1-1/2)	20CrMo	Ni35
