RW Model Cup Anchor Thin Walled Sucker Rod Pump
RW thin walled sucker rod pump description:
API pump and special pump of Puyang Zhongshi Group
RHAC, RHBM, RHAM , RTH(B)C, TH(B)M, RWBM, RWBC, RWAM, RWAC RHBM, RHBC
Basic characters of pump parts:
The inner surface of the pump barrel is processed with carbonization quench and chrome plating technology
The plunger surface is processed with thermal metal spraying technology
The pump meets the requirement of long stroke, high speed and deep producing
It has the advantages of high pumping efficiency, large displacement, wear and corrosion resistance, long operation and easy repairing.
It accords with API SPEC 11AX standard, and has the certificate of authority to use the official API monogram.
RW thin walled pump technical specification:
| Pump model | Pump diameter | Barrel length (ft) | Plunger length (ft) | Stroke length (ft) | Extension length (ft) | Tubing size EUE/NUE | Sucker rod |
| 20-125RWAM | Ø31.75 | 2.1-10 | 0.3-8 | 1.2-9 | / | 2-3/8” | 5/8” 3/4” |
| 20-125RWAC | | | | | | | |
| 20-125RWBM | | | | | | | |
| 20-125RWBC | | | | | | | |
| 20-150RWAM | Ø38.10 | | | | | | |
| 20-150RWAC | | | | | | | |
| 20-150RWBM | | | | | | | |
| 20-150RWBC | | | | | | | |
| 25-200RWAM | Ø50.80 | | | | | 2-7/8” | |
| 25-200RWAC | | | | | | | |
| 25-200RWBM | | | | | | | |
| 25-200RWBC | | | | | | | |
| 30-250RWAM | Ø63.50 | | | | | 3-1/2” | |
| 30-250RWAC | | | | | | | |
| 30-250RWBM | | | | | | | |
Features:
1. Have cup seating and mechanical seating, mechanical seating is suitable for high temperature oil well
2. The top anchored pump with stationary barrel is suitable for sandy wells.
3. The bottom anchored pump with stationary barrel is suitable for deep wells.

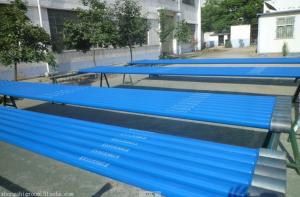

Sucker rod pump packing:
