Grade D K H Oilfield Sucker Rods For Deep Well PCP Pumps

Brand Name : Zhongshi

Model Number : sucker rod

Certification : API ,ISO ,QHSE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000pcs

Delivery Time : 2weeks

Packaging Details : exported packing

Product name : Alloy Steel Sucker Rod

Grade : D,KD,HY,K,HL

Standard : API 11B

Size : 3/4",1",5/8"-1-1/8"

Length : 25-30ft

Package : Bundle as per API 11B standard

Contact Now

API Spec 11B Grade D & K GradeH Sucker Rod Suit For Deep Well And PCP Pumps

Product Description:

Sucker rod is manufactured according to API Spec 11B which mainly includes grade D and K. Grade H sucker rod is developed to suit for deep well and pcp pumps. Zhongshi alway provide the sucker rods which have the D ,K, KD , HL, HY type sucker rod.

Sucker Rod Manufacturing Process:

1. Inspected rod bars weather have any demage, fault and discontinuities.
2. Rod Bars are been machine straightened and cold drawn to the required size.
3. The rod bar ends are hot forged according to the designed sizes
4. The rods are heat treated with the full length
5. Then The rods are checked again for straightness.

6. Rods are cleaned by shot-blasting and remove any scale and oxidation.
7. Then machine forged ends on C. N. C. Lathe machines as per API dimensions and checked with API approved gauges.

Sucker Rod Specification:

Size

in (mm)

 Rod Body diameter in (mm) diameter of ext. thread
in (mm)		 Full size Coupling OD mm (in)

Coupling

OD mm (in)

 Wrench square W*L mm (in) Length series m (ft)
5/8 (16) 5/8 (15.88) 15/16 (23.81) 38.10(1.5) 31.8 (1.25) 22.2×31.8 (7/8×1-1/4) 7.62 (25)
3/4 (19) 3/4 (19.05) 1-1/16(26.99) 41.28(1.625) 38.1 (1.5) 25.4×31.8 (1×1-1/4) 9.14 (30)
7/8 (22) 7/8 (22.23) 1-3/16 (30.16) 46.0(1.812) 41.3 (1.625) 25.4×31.8 (1×1-1/4) 0.6 (2), 1 (3)
1 (25) 1 (25.40) 1-3/8 (34.93) 55.6(2.187) 50.8 (2) 33.3×38.1(1-5/16×1-1/2) 2 (6), 3 (10)
1-1/8 (28) 1-1/8 (28.58) 1-9/16 (39.7) 60.33(2.375) 57.2 (2.25) 38.1×41.3 (1-1/2×1-5/8)

Mechanical Properties of Sucker Rods:

Grade

Min Yield strength 0.2%

offset M Pa (psi)

 Tensile strength
M Pa (psi)

Elongation

δ%

 Reduction of area ψ%
K 414 (60, 000) 621-793(90, 000-115, 000) ≥13 ≥60
C 414 (60, 000) 621-793(90, 000-115, 000) ≥13 ≥50
D 586 (84, 970) 793-965 (114, 985-139, 925) ≥10 ≥50
KD 590(85, 000) 793-965 (114, 985-139, 925) ≥10 ≥50
HL 795(115,000) 965-1,195(140,000-173,339) ≥10 ≥45
HY 540 (78, 300) 965-1,195(140,000-173,339) ≥42 ≥224

Grade D K H Oilfield Sucker Rods For Deep Well PCP Pumps


Product Tags:

Deep Well Oilfield Sucker Rods



Grade H Oil Well Sucker Rods



PCP Pumps Oilfield Sucker Rod


Wholesale Grade D K H Oilfield Sucker Rods For Deep Well PCP Pumps from china suppliers

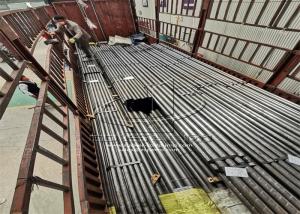

Grade D K H Oilfield Sucker Rods For Deep Well PCP Pumps Images
