RW Tungsten Carbide Sucker Rod Pump For Downhole Oilfield Equipment

Brand Name : zhongshi

Model Number : RHBM

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 SETS/MONTH

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Pump type : Sucker Rod Pump

Basic model : RH, RW

Seating type 1 : Cup seating

Seating type 2 : Mechanical seating

Valve ball & seat 1 : Stainless steel material

Valve ball & seat 2 : Tungsten carbide material

Contact Now

Oilfield Equipment Downhole Use Sucker Rod Pump

Downhole use sucker rod pump description:

The inner surface of the pump barrel is processed with nickel carbide and chrome plating technology; the plunger surface is processed with thermal metal spraying technology

The pump meets the requirement of long stroke, high speed and deep producing

It has the advantages of high pumping efficiency, large displacement, wear and corrosion resistance, long operation and easy repairing.

The biggest difference between the rod pump and the tube pump is that the tube pump body is directly connected to the tubing string, while the rod pump is connected to the tubing string through a support joint, and the rod pump body is placed inside the tubing.


When inspection and maintenance pump,it need not to put out of the tubing string, only through rod string together put out of the whole pump, operation is simple.

Sucker rod pump-RHBC technical parameters:

RHBC model Pump OD (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in) Sucker rod size
15-106RHBC Ø26.99 2.1-10.4 0.3-8.0 1.2-9.0 0.3-0.9 1.9”

CYJ16

CYJ19
20-125RHBC Ø31.75 2-3/8”
25-150RHBC Ø38.10 2-7/8”
25-175RHBC Ø44.45 2-7/8”
30-225RHBC Ø57.15 3-1/2”

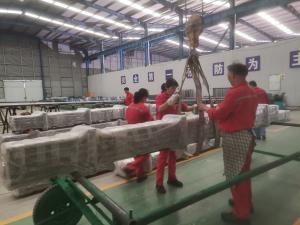

Sucker rod pump packing photo:

RW Tungsten Carbide Sucker Rod Pump For Downhole Oilfield Equipment
