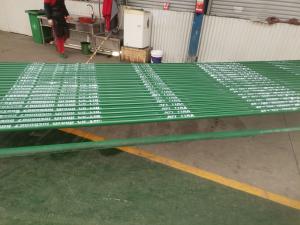

Spray Metal Oil Sucker Rod Pumps Plain Pin End Plunger

Brand Name : Zhongshi

Model Number : Sucker rod pump

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 1000 SETS/MONTH

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Pump type : Sucker rod pump

Plunger material : High carbon steel

Plunger surface : Plain

Plunger coating : Spray metal

Plunger length : 2"-24"

Structure : Inserted

Contact Now

Spray Metal Plain Pin End Plunger Oil Sucker Rod Pumps

Plain pin end plunger sucker rod pump desciption:

sucker-rod pumps are a key component of a sucker-rod lift type of artificial lift system.

Sucker rod pump is equipped with a seating nipple, seating nipple connection on the tubing string, down to the bottom of the well with the tubing string.

There is a wide range of plunger (or pump-bore) sizes standardized by the industry. The API pump-bore sizes that are currently available range from 1 1/16 to 3 3/4 in. in diameter. This 1 1/16-in. size has been added back in the latest edition of the standard.

The plungers always are plain surface if no special request. There are the grooves on the plungers surface, these grooves are called sand grooves.

Plunger material:

1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).

Technical Parameters table:

Pump model Pump size(in) Plunger length (mm) Range of Stroke (mm) Pump Constant (m3/d) Tubing size (in) Sucker rod size(mm) Length of extension Coupling
25-125 1.25 600-1200 600-1200 1.14 2-1/2 2-7/8 16 300-900
25-150 1.5 1.642 2-1/2 2-7/8 16
25-175 1.75 2.235 2-1/2 2-7/8 16
20-175
25-225 2.25 3.694 2-7/8 19
25-275 2.75 5.518 2-7/8 22
30-275 2.75 5.518 3-1/2 22
30-325 3.25 7.707 3-1/2 22
30-375 3.75 10.261 3-1/2 25
40-375 3.75 10.261 4 25

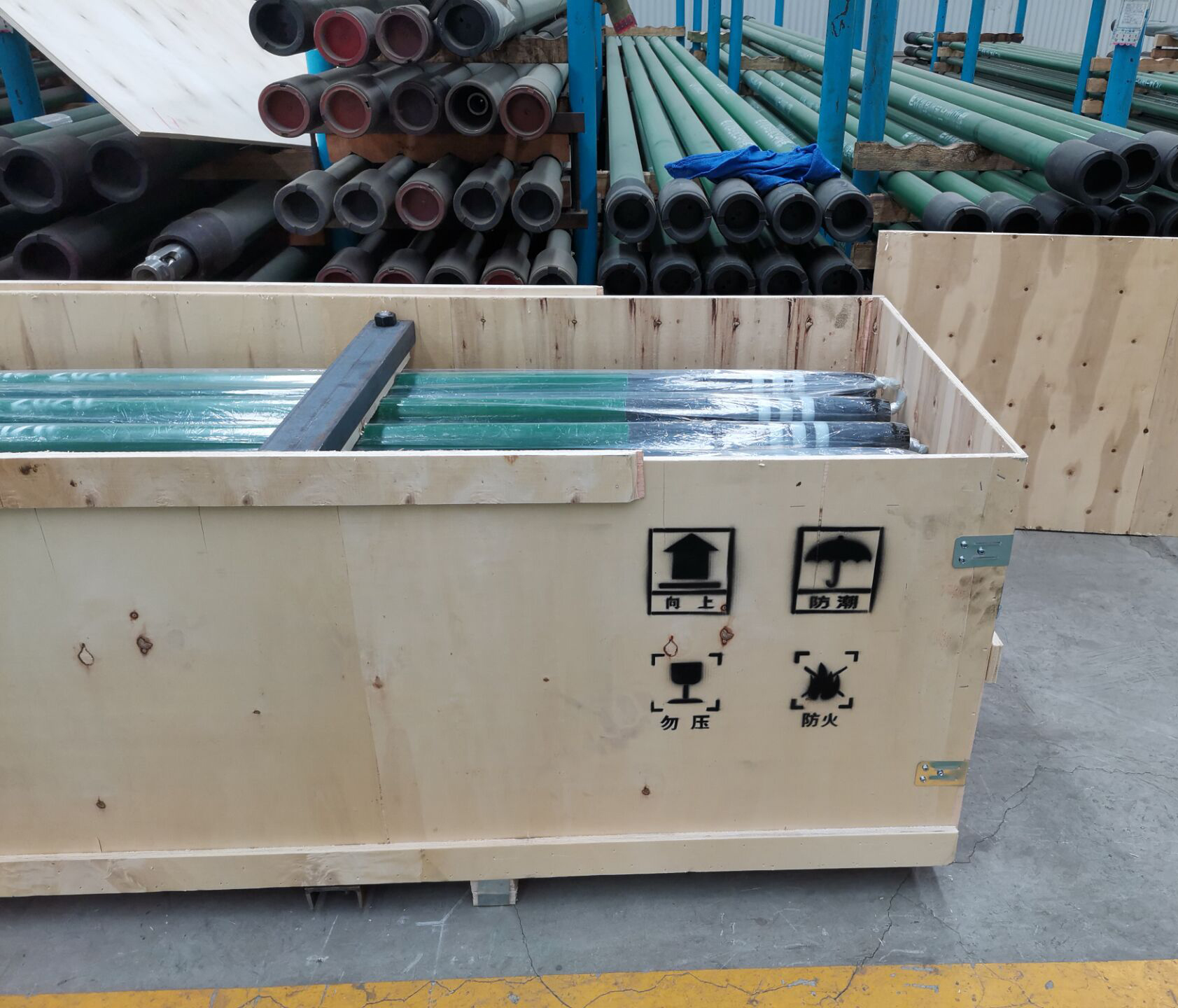

Packing photo:

Spray Metal Oil Sucker Rod Pumps Plain Pin End Plunger
