API 11AX Suker Rod Pump With Zirconia Ceramics Valve Ball Seat

Brand Name : Zhongshi

Model Number : RWBM

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 1000 SETS/MONTH

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Rod pump type : Thin wall pump

Anchor location : Top or bottom

Anchor type : Mechanical or cup

Barrel type : Thin walled barrel

Barrel material : Carbon steel in usual

Application : Oil production

Contact Now

API 11AX Suker Rod Pump With Stainless Steel And Tungsten Carbide Valve Ball & Seat

Thin walled sucker rod pump description

Thin walled sucker rod pump is RW series, the models are listed as below:

Specification
1. Type of barrel: chrome plated or carbonitrided surface
2. Type of plunger: metal spray or chrome plated surface
3. Valve ball and seat materials: stainless steel and tungsten carbide
4. Pump designation:
1) RHAM: Stationary Heavy Wall Barrel, Top Anchor, Mechanic Seating, Rod Pump
2) RHBM: Stationary Heavy Wall Barrel, Bottom Anchor, Mechanic Seating, Rod Pump
3) RHBC: Stationary Heavy Wall Barrel, Bottom Anchor, Cup Seating, Rod Pump
4) RHAC: Stationary Heavy Wall Barrel, Top Anchor, Cup Seating, Rod Pump
5) RHT: Traveling Heavy Wall Barrel, Bottom Anchor, Rod Pump
6) RWA: Stationary Thin Wall Barrel, Top Anchor, Rod Pump
7) RWT: Traveling Thin Wall Barrel, Bottom Anchor, Rod Pump
8) RWB: Stationary Thin Wall Barrel, Bottom Anchor, Rod Pump
9) RSA: Stationary Thin Wall Barrel, Top Anchor, Soft-packed Plunger, Rod Pump

Thin wall pump(RWBM) parameter data:

RWBM

specification

 Pump diameter (in) Barrel length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
20-125RWBM Ø31.75 2.1-10.4 1.2-9.0 / 2-3/8”
20-150RWBM Ø38.10 2-3/8”
25-200RWBM Ø50.80 2-7/8”
30-250RWBM Ø63.50 3-1/2”

API 11AX Suker Rod Pump With Zirconia Ceramics Valve Ball Seat

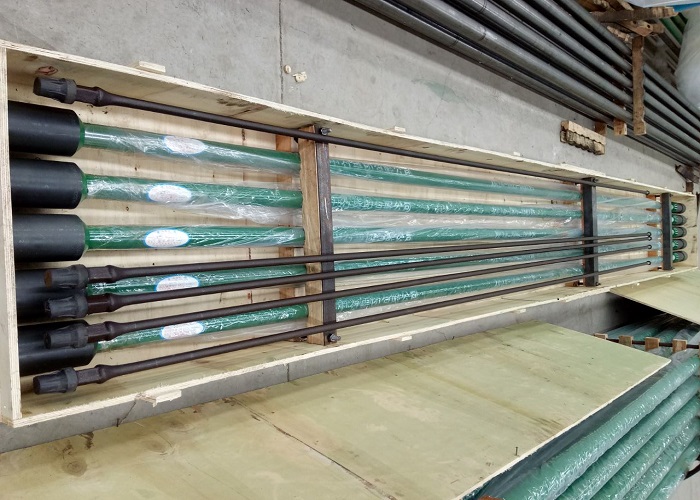

Packing Pictures

API 11AX Suker Rod Pump With Zirconia Ceramics Valve Ball Seat
