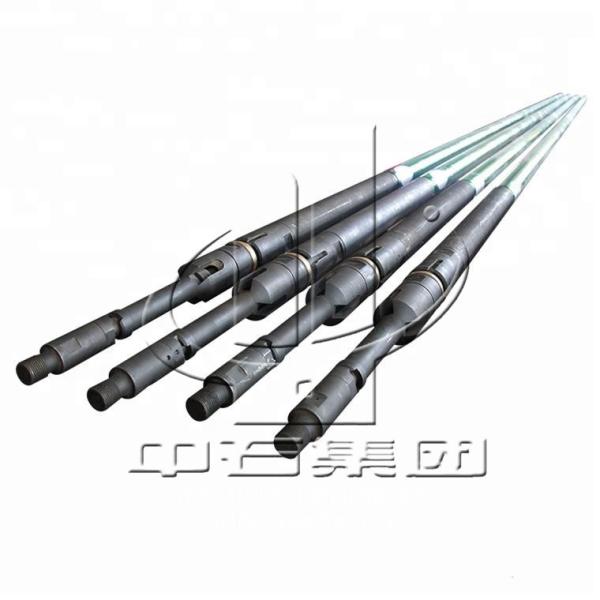

Oil Drilling Sucker Rod Pump Anti Corrosion API 11AX 25-150RHAM-32-4-2

Brand Name : PUYANGZHONGSHI

Model Number : API or customized

Certification : API 11AX-0061

Place of Origin : Puyang city , Henan province ,China

MOQ : 1pcs

Price : USD 200-300$/pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100pcs one month

Delivery Time : 30-50 work days

Packaging Details : wooden cases

Type : THM, THC, TH, RHBM, RHBC, RHAM, RHAC, RWBC

Material : Carbon Steel, Stainless Steel, AISI 4130, 20CrMoA, alloy steel

Machine type : pump

Use : well drilling

Color : Green Or As Your Request

Power : Machanical energy

Plunger length (ft) : 2-24

Advantage : High Performance, Anti-Corrosion & Anti-Abrasion

Contact Now

After the rod type oil well pump is integrally assembled on the ground, it is connected to the lower end of the sucker rod and runs into the well through the tubing as a whole. During pump inspection, there is no need to lift and lower the oil pipe, which is convenient for operation and suitable for deep wells. The service life of the oil pipe is prolonged because the operation time is shortened and the times of making up and breaking down the oil pipe are reduced. According to the type of support assembly, rod type oil well pump can be divided into mechanical type and leather cup type. According to the support position, it can be divided into fixed barrel top fixing, fixed barrel bottom fixing and moving barrel bottom fixing.

型号Model

公称直径,mm

Nominal Dia. (in)

柱塞长度,m

Plunger Length(ft)

 冲程,m Stroke

泵常数,m3/d

Pump Constant

连接油管螺纹

Tubing and Thread

连接抽油杆,in

Sucker Rod
25-112RHAC/M 28(1.12)

1.2–1.8

(4–6)

 ≤9.3 0.92 2-7/8 3/4
20-125RHAC/M 32(1.25) 1.14 2-3/8 3/4
25-150RHAC/M 38(1.50) 1.64 2-7/8 3/4
25-175RHAC/M 44(1.75) 2.24 2-7/8 3/4
30-225RHAC/M 57(2.25) 3.69 3-7/8 3/4
20-125RHBC/M 32(1.25) 1.14 2-3/8 3/4
25-150RHBC/M 38(1.50) 1.64 2-7/8 3/4
25-175RHBC/M 44(1.75) 2.24 2-7/8 3/4
30-225RHBC/M 57(2.25) 3.69 3-1/2 3/4
20-125RHTC/M 32(1.25) 1.14 2-3/8 3/4
25-150RHTC/M 38(1.50) 1.64 2-7/8 3/4
25-175RHTC/M 44(1.75) 2.24 2-7/8 3/4
30-225RHTC/M 57(2.25) 3.69 3-1/2 3/4

Oil Drilling Sucker Rod Pump Anti Corrosion API 11AX 25-150RHAM-32-4-2Oil Drilling Sucker Rod Pump Anti Corrosion API 11AX 25-150RHAM-32-4-2Oil Drilling Sucker Rod Pump Anti Corrosion API 11AX 25-150RHAM-32-4-2

Company Information

Puyang Zhongshi Group co., Ltd. was founded in 1996, which is the restructured enterprise

of Central Plains oilfield branch company of SINOPEC . The company registered capital is

60.83 million yuan, with annual output value 200 million yuan, 580 employees, including

more than 160 technical and administrative staff . Oil machinery is our main products, the

leading products include pumping unit, subsurface sucker rod pump, wellhead (Christmas

Tree), pressure vessels, drilling solid control series products and cementing accessories. We

had attained ISO 9001 in 1998 and API Certificates in 2002 .
