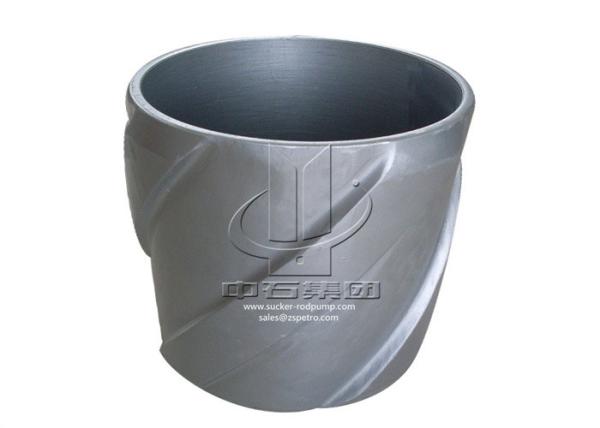

Spiral Type Solid Rigid Casing Centralizer Oilfield Cementing

Brand Name : Puyang Zhongshi Group

Model Number : 4 1/2"~20"

Certification : API,ISO,QHSE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, MoneyGram

Delivery Time : depends on quantity

Packaging Details : Wooden Box

Product : Solid Rigid Stamped Vane Casing Centralizers

Size : 4 1/2"~36"

Type : Solid rigid

Certificate : API 10D

Vane : Hollow

Application : Oilfield Cementing Equipment

Contact Now

API Oilfield Cementing Spiral Type Solid Rigid Casing Centralizer​


Solid Rigid Stamped Vane Casing Centralizers Features

  • Center the casing in the well.
  • Center the drillpipe during innerstring cementing,helping adapter running in the inserting seat and assuring sealing up.
  • Improve quality of cementing through inproving cement flow by reducing the effects of channeling

Solid Rigid Stamped Vane Casing Centralizers Specification

zhongshi spiral vane aluminum rigid centralizer Spiral Solid Centralizers were developed in response to the need for better cementing in deviated and horizontal wells. The unique design ensures optimal flow area and is strong and resistant to impact, These Centralizers are also able to withstand high well bore temperature while providing maximum horizontal standoff.

Specification(in) ID(mm) OD(mm) Holding Force(kn)
13 3/ 8” 338 350 40
10 3/ 4” 272 284 40
9 5/ 8” 245 257 40
8 1/ 8” 206 218 40
7 5/ 8” 193 285 30
7” 177 189 30
5 1/ 2” 139 151 30
5” 126 138 24
4 1/ 2” 114 126 24


Spiral Type Solid Rigid Casing Centralizer Oilfield Cementing


Product Tags:

Solid Rigid Casing Centralizer



Spiral Type Turbolizer Centralizer



Oilfield Cementing Bow Centralizer


Wholesale Spiral Type Solid Rigid Casing Centralizer Oilfield Cementing from china suppliers

Spiral Type Solid Rigid Casing Centralizer Oilfield Cementing Images
