Brand Name : Puyang Zhongshi Group
Model Number : 4 1/2"~36"
Certification : API,ISO,QHSE
Place of Origin : China
MOQ : 1
Price : Negotiable
Payment Terms : T/T, MoneyGram
Delivery Time : depends on quantity
Packaging Details : Wooden Box
Product : Cementing Casing centralizer rigid centralizer
Type : Stand off
Color : Red
Vane Type : Straight
Service : OEM
Application : Well cementing
Cementing Casing centralizer rigid centralizer
Stamped Centralizers Increase flow-by area to optimize mud displacement in vertical,inclined,and horizontal wells.
Available in straight or spiral blades.
The blades design can reduce minimum friction when running a casing duo to the smooth profile.
For lower torque and drag forces, undergo a special coating to prevent from rust.
The set screws can be integral with solid rigid centralizer body and then help save operation time and cost.
Specification | casing size (mm) | Hole Size (mm) | Inner Diameter (mm) | Outer Diameter (mm) |
4-1/2"×6" | 114 | 152 | 118 | 146 |
5-1/2"×8-1/2" | 140 | 216 | 142 | 210 |
7″×8-1/2″ | 178 | 216 | 182 | 210 |
9-5/8″×12-1/4″ | 244 | 311 | 249 | 305 |
![]() |

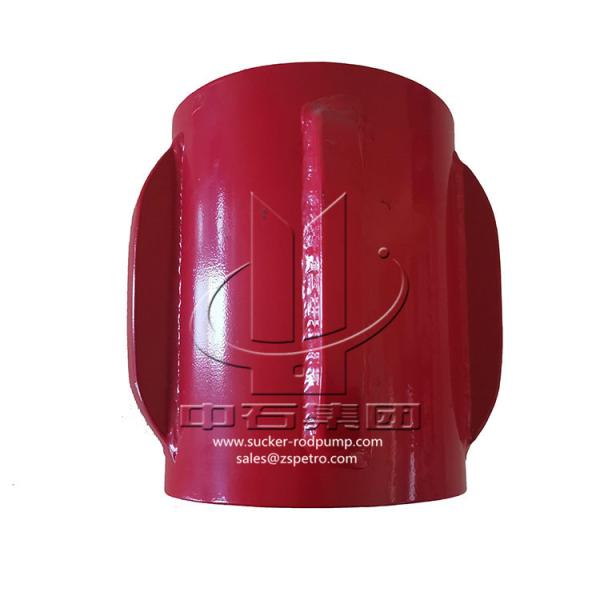

Stamped Cementing Centralizer Rigid Centralizer 244mm Images |
