Precision Heavy Wall Barrel Oilfield Sucker Rods Of THC Tubing

Brand Name : Zhongshi

Model Number : Sucker rod pump

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 1000 SETS/MONTH

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Pump type : Tubing pump

Barrel material : Carbon steel

Warranty : 12 months

Seating location : Bottom

Seating type : Cup

Barrel type : Heavy wall

Series : THC

Standard : API 11AX

Contact Now

Precision Heavy Wall Barrel Downhole Pumps Of THC Tubing

Heavy Wall Barrel THC downhole pump Description

THC tubing pump is with heavy wall barrel, suitable for higher volumes and pressures.

The pump barrel assembly of the tubing pump connected on the tubing string,and with its down to the bottom of the well.

The retrievable type standing valve rests in a cup-type seating nipple at the bottom of the tubing string. This can be removed with the sucker string by means of a puller pin assembly which is permanently attached to the lower end of the plunger.

Technical parameter list:

THC Model Pump diameter (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
20-175THC Ø44.45 7-34 1-26 4-29 2-8 2 3/8"
25-225THC Ø57.15 2 7/8"
30-275THC Ø69.85 3 1/2"
40-375THC Ø95.25 4 1/2"

Features:

1. Cup type seating assembly

2. Heavy wall barrel

3. Bottom assembly

Precision Heavy Wall Barrel Oilfield Sucker Rods Of THC Tubing


Product Tags:

Heavy Wall Oilfield Sucker Rods



THC Oilfield Sucker Rods



Heavy Wall Sucker Rod Pump


Wholesale Precision Heavy Wall Barrel Oilfield Sucker Rods Of THC Tubing from china suppliers

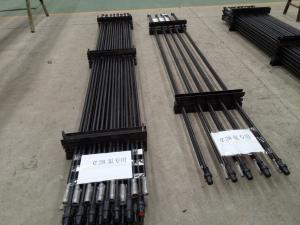

Precision Heavy Wall Barrel Oilfield Sucker Rods Of THC Tubing Images
