Mechanical Dia 26.99'' SRP Suker Rod Pump

Brand Name : Zhongshi

Model Number : Sucker rod pump

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 1000 SETS/MONTH

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Type of seating assembly : Mechanical seating

Model series : RH and RW

RH series : Heavy walled pump

RW series : Thin walled pump

Barrel coating : usual chrome plated

Plunger material : 45# steel

Contact Now

RH And RW Series Mechanical Suker Rod Pump

Mechanical Seating Sucker Rod Pump Description

Mechanical anchor rod pump with thin wall and heavy wall can be withstand higher oil well temperatuer than the cup type. There are two series: RH and RW. This kind of rod pump is also equipped with a support joint, support joint connected on the tubing string, and it is together with the tubing string down to the bottom. Plunger assembly is connected on the rod string and together with the whole pump down to support joint position, pump is fixed within the support joint by external force, plunger assembly is together with the sucker rod string up and down reciprocating movement to achieve pumping work. If the pump appeared quality problem,it need not to put out of the tubing string, only through rod string together put out of the whole pump, operation is simple. RH series is convenient than the RW series when transportation.

Technical parameter list:

RH series

Specification Pump diameter (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
15-106RHBM Ø26.99 2.1-10.4 0.3-8.0 1.2-9.0 0.3-0.9 1.9"
20-125RHAM Ø31.75 2-3/8”
20-125RHBM
25-150RHAM Ø38.1 2-7/8”
25-150RHBM
25-175RHBM Ø44.45
25-175RHAM
30-225RHAM Ø57.15 3 1/2"
30-225RHBM

RW series

Specification Pump diameter (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
20-125RWAM Ø31.75 2.1-10 0.3-8.0 1.2-9.0 / 2-3/8”
20-125RWBM
20-150RWAM Ø38.1 2-7/8”
20-150RWBM
25-200RWAM Ø50.80
25-200RWBM
30-250RWAM Ø63.50 3 1/2"
30-250RWBM

Features


1. As barrel wall is divided into two series: RH and RW
2. Mechanical seating assembly location: top and bottom

4. High temperature resistance.

Mechanical Dia 26.99'' SRP Suker Rod Pump


Product Tags:

Dia 26.99'' Suker Rod Pump



Mechanical Suker Rod Pump



Dia 26.99'' srp pump


Wholesale Mechanical Dia 26.99'' SRP Suker Rod Pump from china suppliers

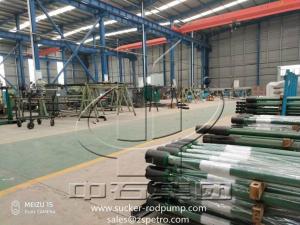

Mechanical Dia 26.99'' SRP Suker Rod Pump Images
