RHBM Stationary Mechanical Bottom Anchor Oil Sucker Pump

RHBM Stationary Mechanical Bottom Anchor Suker Rod Pump

Mechanical Anchor Sucker Rod Pump Description

Mechanical anchor sucker rod pump is stronger than the cup anchor rod pump. This kind of rod pump is also equipped with a support joint, support joint connected on the tubing string, and it is together with the tubing string down to the bottom. Plunger assembly is connected on the rod string and together with the whole pump down to support joint position, pump is fixed within the support joint by external force, plunger assembly is together with the sucker rod string up and down reciprocating movement to achieve pumping work.When inspection and maintenance pump,it need not to put out of the tubing string, only through rod string together put out of the whole pump, operation is simple. Mechanical anchor rod pump can withstand high oil well temperature.

Technical parameter list:

Features

1. suitable for corrosion and small amount of sand and gas, deep Wells, such as complex well conditions, the use of safe, stable performance and wide application.
2. Endurable rod pump with heavy wall barrel

4. Mechanical rod pump are running inside the tubing with the support joint ,it is suitable for high temperature of deep well

RHBM Oil Sucker Pump

Stationary Oil Sucker Pump

RHBM Bottom Anchor Pump

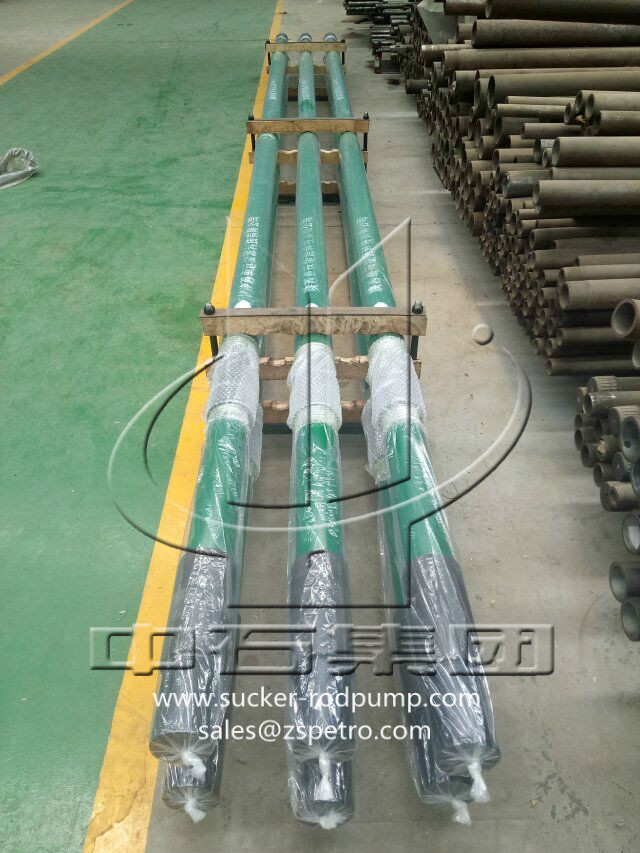

RHBM Stationary Mechanical Bottom Anchor Oil Sucker Pump Images
