API Oilfield Pump Parts Tungsten Carbide Ball And Valve Seat

Brand Name : Zhongshi

Model Number : V11-106

Certification : API, ISO, QHSE

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Payment Terms : L/C, D/P, T/T, Western Union, D/A

Supply Ability : 5000 pcs/month

Delivery Time : 10~15 workdays

Packaging Details : Standard exported packing

Product : API Tungsten Carbide valve ball and valve seat

Color : Required

Certificate : API 11AX

Warranty : 12 months

Material : 6Cr18Mo

Contact Now

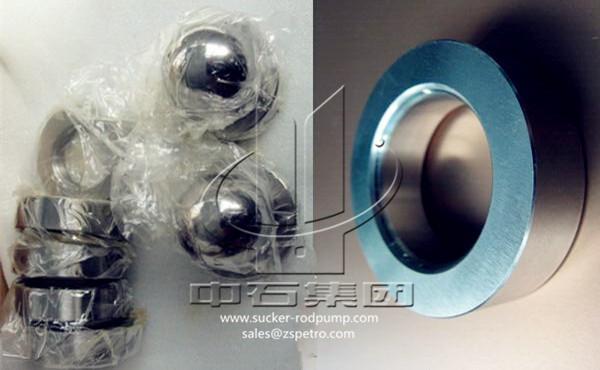

API Tungsten Carbide valve ball and valve seat

Product Description

Valve balls and valve seats are widely used in oil fields , their performance directly affects the use effect and service life of the pumps.
Each ball-and-seat combination is vacuum tested to ensure a perfect seal is obtained in all positions of contact.
For sealing of valves of oil pumps in petroleum industry's sand containing wells, viscous oil wells, sea oil wells

Material performance table

CODE INSTRUCTION HARDNESS MATERIAL
A1 Stainless steel Ball: HRC 58-65 UNS 41000–UNS 44000
Seat: HRC 52-56 9Cr18Mo & 6 Cr18Mo
B1 Cobalt alloy casting Ball: HRC 56-63 Cobalt, chromium and tungsten alloy
Seat: HRC 50-56
B2 Cobalt alloy, powder metallurgy Ball: HRC 53-60 Cobalt, chromium and tungsten alloy
Seat: HRC 51-57
C1 Tungsten carbide Ball: HRA 88-89 Tungsten with cobalt adhesive
Seat: HRA 88-89.5
C3 Titanium carbon compounds Ball: HRA 89-90.5 Tungsten and titanium with cobalt adhesive carbon compounds
Seat: HRA 89-90.5



Features

  • Durable,
  • corrosion resistant,
  • high temperature resistant,
  • anti-aging, etc.
