API 5CT Pup Joint And Coupling EU / NU For Oil Tubing Pipe K55 J55 L80 N80 P110

Name: API 5CT Pup Joint And Coupling EU NU For Oil Tubing Pipe K55 J55 L80 N80 P110
Brand: zhongshi
Price: 1 USD

Brand Name : zhongshi

Model Number : pup joint

Certification : API 5CT ,ISO ,QHSE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T

Delivery Time : 2 weeks

Packaging Details : exported packing

Material : alloy steel,J55 K55 N80 L80 P110

Product name : API 5ct casing and tubing pup joint

Standard : API, ISO,QHSE

Thread : EUE , NUE

Thickness : 2.87-30mm,4.24--20.62mm

Size : 2-3/8-----3-1/2

Contact Now

Product Description:

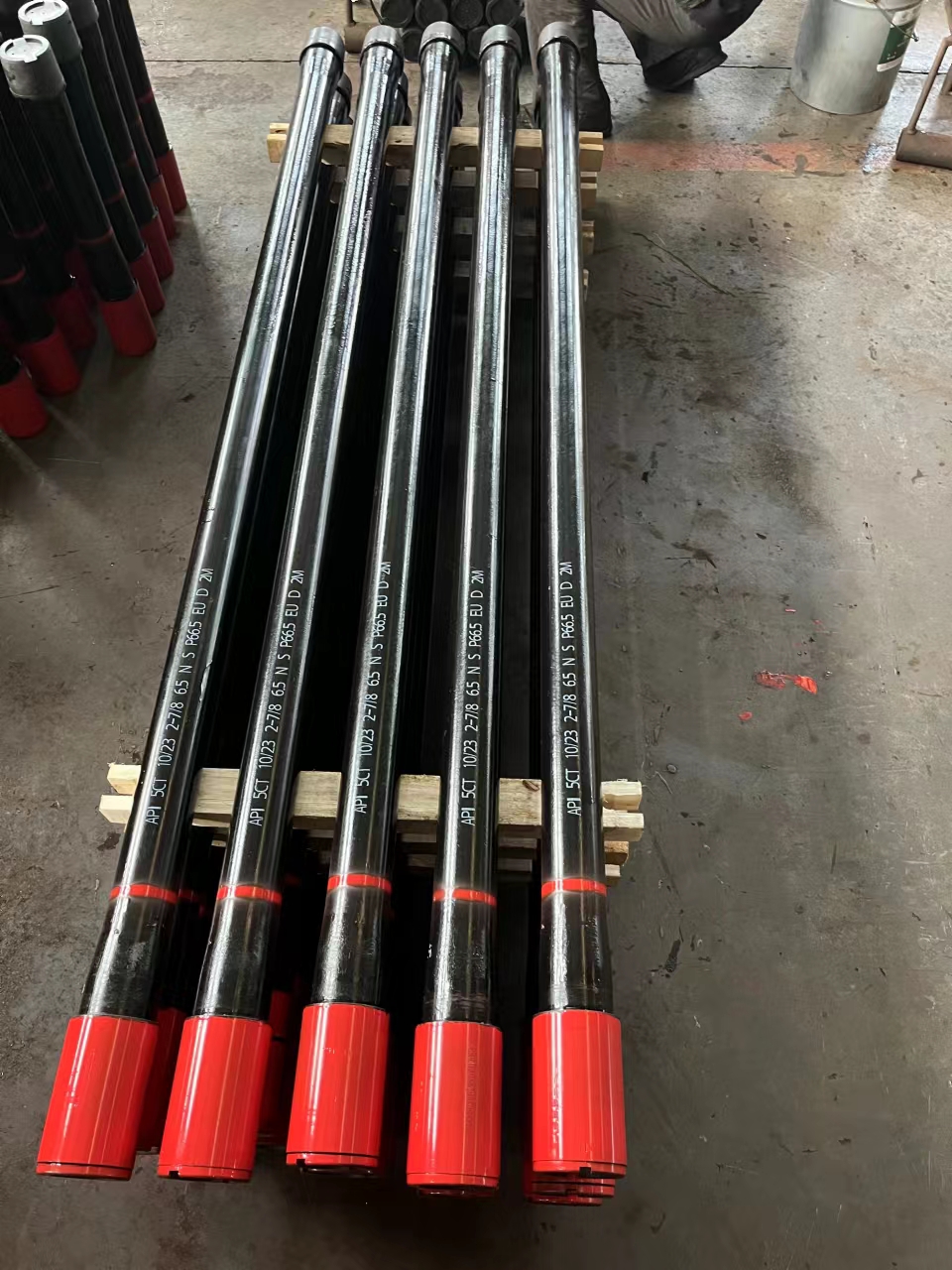

API 5CT PUP JOINT OF TUBING OR CASING
A pup joint is a casing or tubing of length shorter than Range 1 with the same thread connection, used to adjust the length of tubular strings to its exact requirement.
The performance of the pup joint is expected to be the same as the casing / tubing.
Pup joints are manufactured according to API Spec 5CT using prime API monogrammed, seamless oil country tubing.

Technical Parameter:

Diameters:	1.9" through 4.5" nominal O.D.
Weights:	Standard or Heavy Wall
Lengths:	2, 3, 4, 6, 8, 10, 12 ft. Standard (Other lengths available upon request)
Grades:	J-55, N-80, N-80 Q & T, L-80, P-110
Connections:	EUE, NUE, Buttress

Size	Type of Thread	O.D*L (mm)	Weight(kg)
2-3/8"	NUE	73.02*107.95	1.28
2-3/8"	EUE	77.80*132.82	1.55
2-7/8"	NUE	88.90*130.18	2.34
2-7/8"	EUE	93.17*133.35	2.40
3-1/2"	NUE	107.95*142.88	3.71
3-1/2"	EUE	114.30*146.05	4.10
4"	NUE	120.65*146.05	4.35
4"	EUE	127.00*152.40	4.82
4-1/2"	NUE	132.08*155.58	4.89
4-1/2"	EUE	141.30*158.75	6.05
